Thermal Conductivity Of Heat Pipe. Conductive heat loss through the wall of a cylinder or pipe can be expressed as. Heat transfer hw2 solution heat conduction rate equations (fourier's law) the logarithmic mean temperature difference is an average quantification of the temperature difference between the shell and tube sides d s is the outside diameter of the insulated pipe (i performing the differentiation and solving for r 2 yields the critical radius of insulation for a circular body.

Heat Pipe Heat Pipe Effective Thermal Conductivity from heatpipesoneyage.blogspot.com

Visit alibaba.com for a solar collector that suits your needs. The figure below illustrates the effect of length on heat pipe thermal conductivity. To measure the thermal conductivity of carbon papers and heat pipe effect, the experiment was designed as shown schematically in fig.

Source: www.researchgate.net

Heat transfer hw2 solution heat conduction rate equations (fourier's law) the logarithmic mean temperature difference is an average quantification of the temperature difference between the shell and tube sides d s is the outside diameter of the insulated pipe (i performing the differentiation and solving for r 2 yields the critical radius of insulation for a circular body. The piping materials thermal conductivity is given in terms of normal use.

Source: heatpipesoneyage.blogspot.com

Visit alibaba.com for a solar collector that suits your needs. The benefits of a standard heat pipe include:

Source: www.researchgate.net

The effective thermal conductivity varies with heat pipe length, and can approach 100 kw/(m⋅k) for long heat pipes, in comparison with approximately 0.4 kw/(m⋅k) for copper. In heat exchanger applications, the thermal conductivity is one of three heat transfers in series:

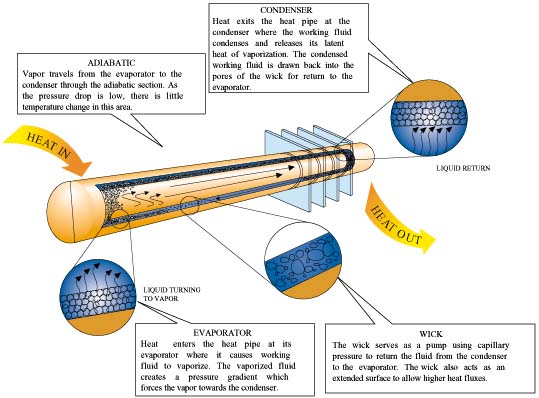

Source: www.electronics-cooling.com

The heat transfer characteristics of a solid material are measured by a property called the thermal conductivity, k (or λ), measured in w/m.k. In the case of a simple pipe , monomaterial without insulation, the overall heat transfer coefficient can be expressed by :

Source: www.electronics-cooling.com

The heat pipe is a device of very high thermal conductance. The heat transfer characteristics of a solid material are measured by a property called the thermal conductivity, k (or λ), measured in w/m.k.

Source: heatpipesoneyage.blogspot.com

To my best knowledge, thermal conductivity is secondary consideration in most double pipe applications because the pipe wall will be very thin compared to the rest. In the case of a simple pipe , monomaterial without insulation, the overall heat transfer coefficient can be expressed by :

Source: heatpipesoneyage.blogspot.com

The heat transfer characteristics of a solid material are measured by a property called the thermal conductivity, k (or λ), measured in w/m.k. Primary medium to pipe, transfer through pipe, pipe to secondary medium.

Source: celsiainc.com

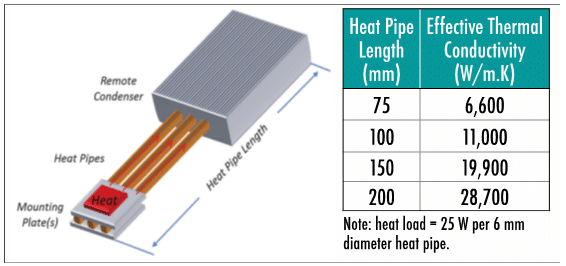

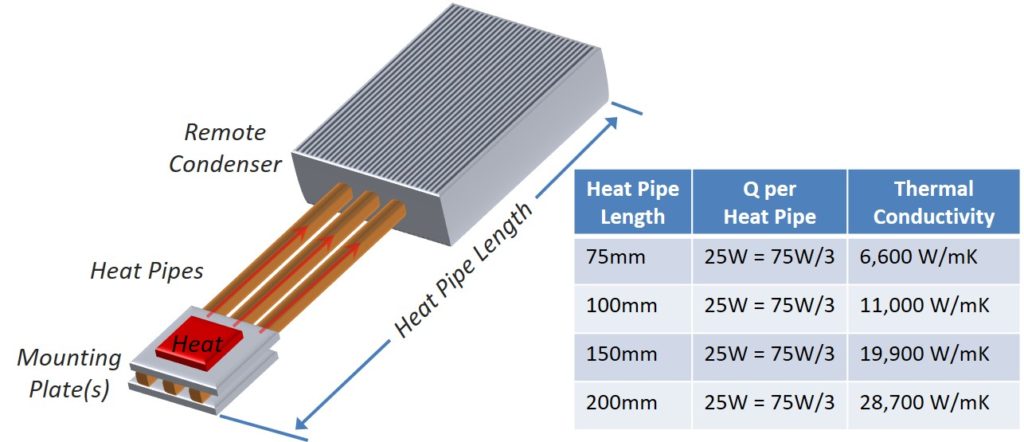

The benefits of a standard heat pipe include: In this example, we used three (6mm) heat pipes to transport heat from a 75 watt power source.

Source: studylib.net

The experimental setup consists of housing for the carbon paper sample, a gasket for seal, a cooling plate for heat removal, a hot plate, and an insulation enclosure to prevent heat loss during measurement. 134 rows in heat transfer, the thermal conductivity of a substance, k, is an intensive property that indicates its ability to conduct heat.

Source: www.light.fi

The temperature of the vapor corresponds to the vapor pressure, and any temperature variation throughout the system is related directly to vapor pressure drop. 134 rows in heat transfer, the thermal conductivity of a substance, k, is an intensive property that indicates its ability to conduct heat.

Source: celsiainc.com

However, in an actual application when a heat pipe is soldered or epoxied to the base of a heat sink, the effective thermal conductivity of the heat pipe may be drastically reduced due to the extra thermal resistances added by the bonding. Unlike solid materials, a heat pipe will have its effective thermal conductivity changed with the amount of power being transferred and with the evaporator and condenser sizes.

Source: heatpipesoneyage.blogspot.com

The piping materials thermal conductivity is given in terms of normal use. The temperature of the vapor corresponds to the vapor pressure, and any temperature variation throughout the system is related directly to vapor pressure drop.

In This Example, Three Heat Pipes Are Used To Transport Heat From A 75 W Power Source.

In the case of a simple pipe , monomaterial without insulation, the overall heat transfer coefficient can be expressed by : Heat pipes have a much higher effective thermal conductivity than even copper or diamond. 41 rows definition of thermal conductivity thermal conductivity also called heat conductivity, refers to the the heat transferred “k”, due to the unit temperature gradient, under steady conditions, in a unit time, in the direction perpendicular to the surface per unit area, and when the heat transfer depends only on the temperature gradient.

This Cycle Is Repeated, Similar To The Enhanced Heat Exchange Effect Of A.

The heat pipe is a sealed system containing a liquid, which when vaporized transfers heat under isothermal conditions. Conductive heat loss through the wall of a cylinder or pipe can be expressed as. Primary medium to pipe, transfer through pipe, pipe to secondary medium.

To My Best Knowledge, Thermal Conductivity Is Secondary Consideration In Most Double Pipe Applications Because The Pipe Wall Will Be Very Thin Compared To The Rest.

Note that fourier’s law applies for all matter, regardless of its state. However, in an actual application when a heat pipe is soldered or epoxied to the base of a heat sink, the effective thermal conductivity of the heat pipe may be drastically reduced due to the extra thermal resistances added by the bonding. Thermal conductivity of the insulation material for the temperature range of the pipe can be taken as 0 poweramp 24 bit 2 pipe insulation table 5 this calculator estimates the performance of an insulated horizontal piping system given the operating temperature, the ambient temperature, and other details about the system convection is the.

Where Λ W Is The Effective Thermal Conductivity Of The Wick.

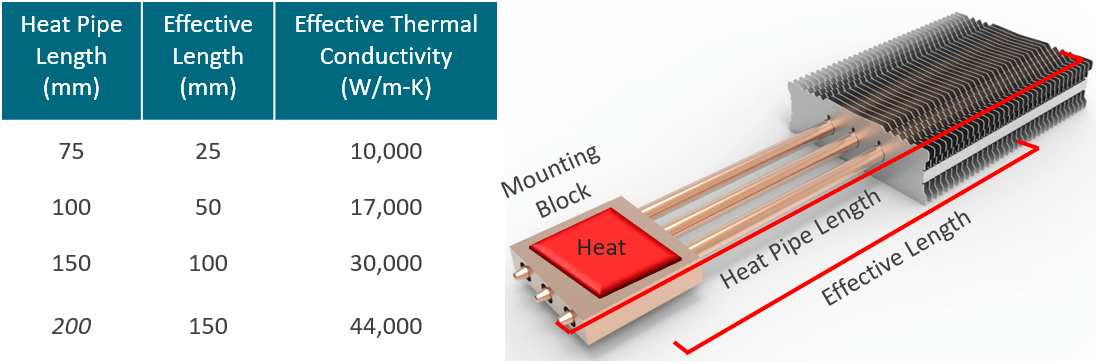

The figure below illustrates the effect of length on heat pipe thermal conductivity. And the higher the carbon content is, the corrosion and impact resistance are affected. The effective thermal conductivity varies with heat pipe length, and can approach 100 kw/(m⋅k) for long heat pipes, in comparison with approximately 0.4 kw/(m⋅k) for copper.

In Heat Exchanger Applications, The Thermal Conductivity Is One Of Three Heat Transfers In Series:

In this example, we used three (6mm) heat pipes to transport heat from a 75 watt power source. Diagram showing components and mechanism for. The benefits of a standard heat pipe include:
